Lubrication plan

A schedule for relubricating straightening rolls with lubrication points and WICAS cassette systems — daily at high speeds and loads, weekly at low speeds and loads — using special and long-life greases.
Technical drawings of a straightening unit with its lubrication points marked, plus cross-sections of three straightening roll designs showing the internal grease paths to the bearings.

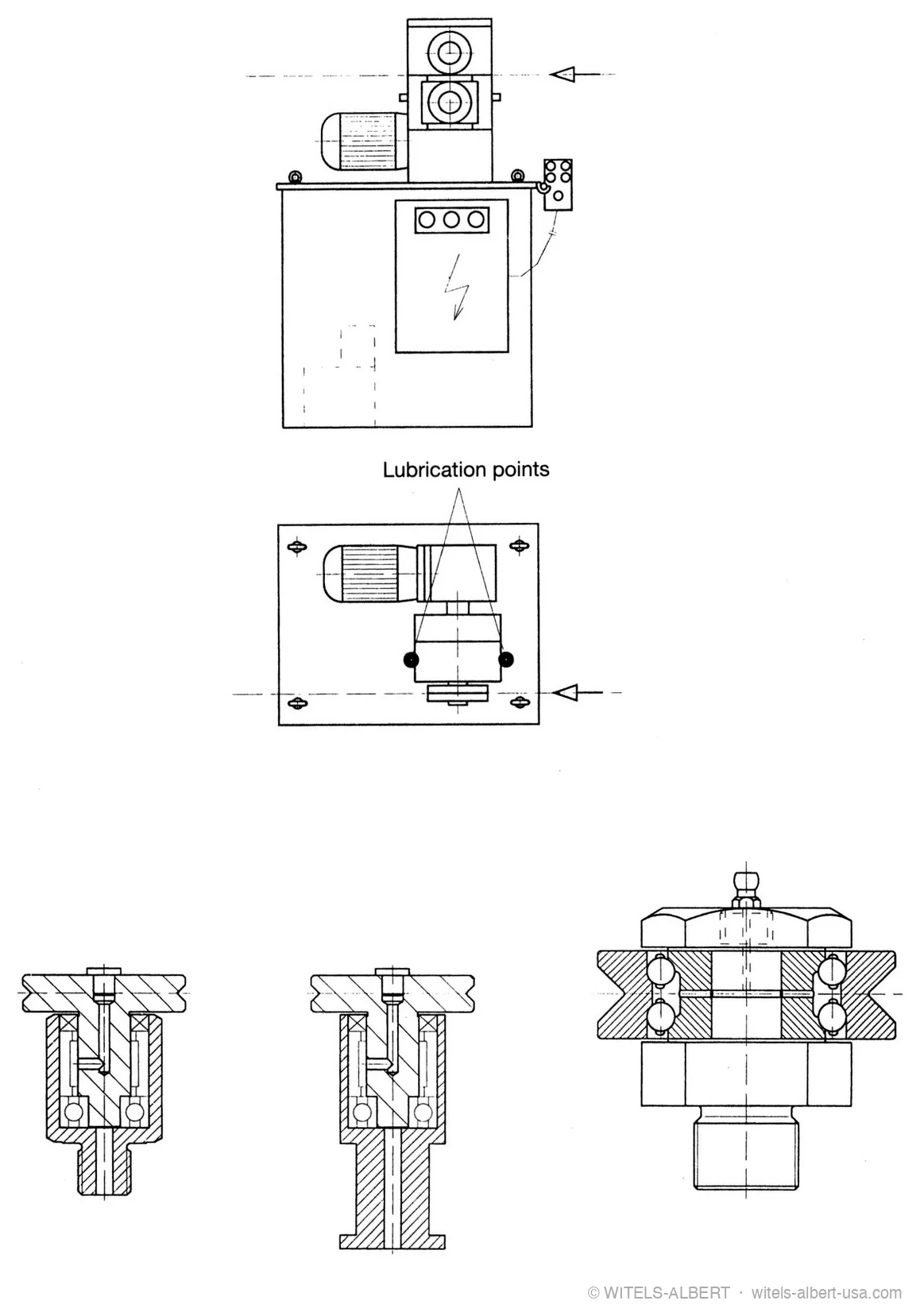

Fig. 1 Technical drawings of a straightening unit with its lubrication points marked, plus cross-sections of three straightening roll designs showing the internal grease paths to the bearings.

Straightening rolls with lubrication points and WICAS cassette systems are designed for use at high speeds. To guarantee a long useful life they must be relubricated at regular intervals according to the specific ambient and operating conditions. We suggest:

  1. daily lubrication when working at high speeds and under high loads
  2. weekly lubrication when working at low speeds and under low loads

We recommend the use of special grease and long-life grease.

Adapted from "We do it straight" — Wire Straightening, p. 109 (ISBN 3-00-005897-4).
