UR Straightening Rolls

ur guide pulley

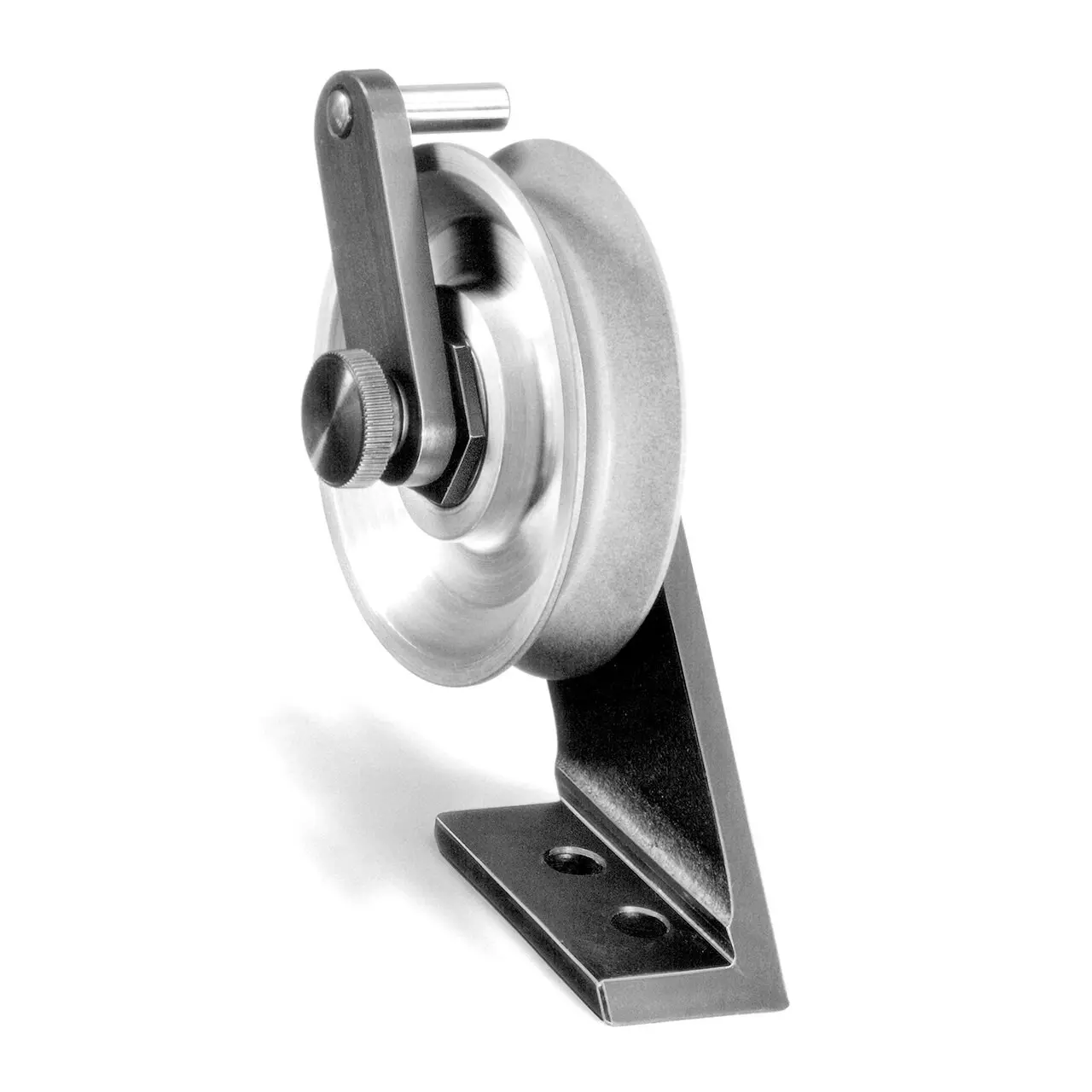

Fig. 1 ur guide pulley
Models
5
Rolls
1
Size range
0.1–10 mm
In inches
0.004–0.394 in

Series overview

Datasheet

Full technical specifications for every UR model in a single PDF.

Download datasheet

How to choose a model

A few checks narrow the UR models below to the ones worth quoting.

Reading the dimensions
The Dimensions column lists the size range, meaning the diameter or thickness of the material, that each model is specified for. For example, UR 30 covers 0.1–2.0 mm (0.004–0.079 in).
Match the size
Pick the model whose range contains the diameter or thickness of your material. The UR series spans 0.1–10 mm (0.004–0.394 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.

Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.

Models in this series

Compare dimension ranges, then add the models you need to a quote request.

UR 1-roll models
ModelDimensionsRequest a quote
UR 30

0.1–2.0 mm0.004–0.079 in

0.1–2.0 mm0.004–0.079 in
UR 63

3.0–4.0 mm0.118–0.157 in

3.0–4.0 mm0.118–0.157 in
UR 126

3.0–6.0 mm0.118–0.236 in

3.0–6.0 mm0.118–0.236 in
UR 189

3.0–8.0 mm0.118–0.315 in

3.0–8.0 mm0.118–0.315 in
UR 252

3.0–10.0 mm0.118–0.394 in

3.0–10.0 mm0.118–0.394 in

Selection help

Not sure which model fits your line?

Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
