HS N Straightening Rolls

hs series rollers

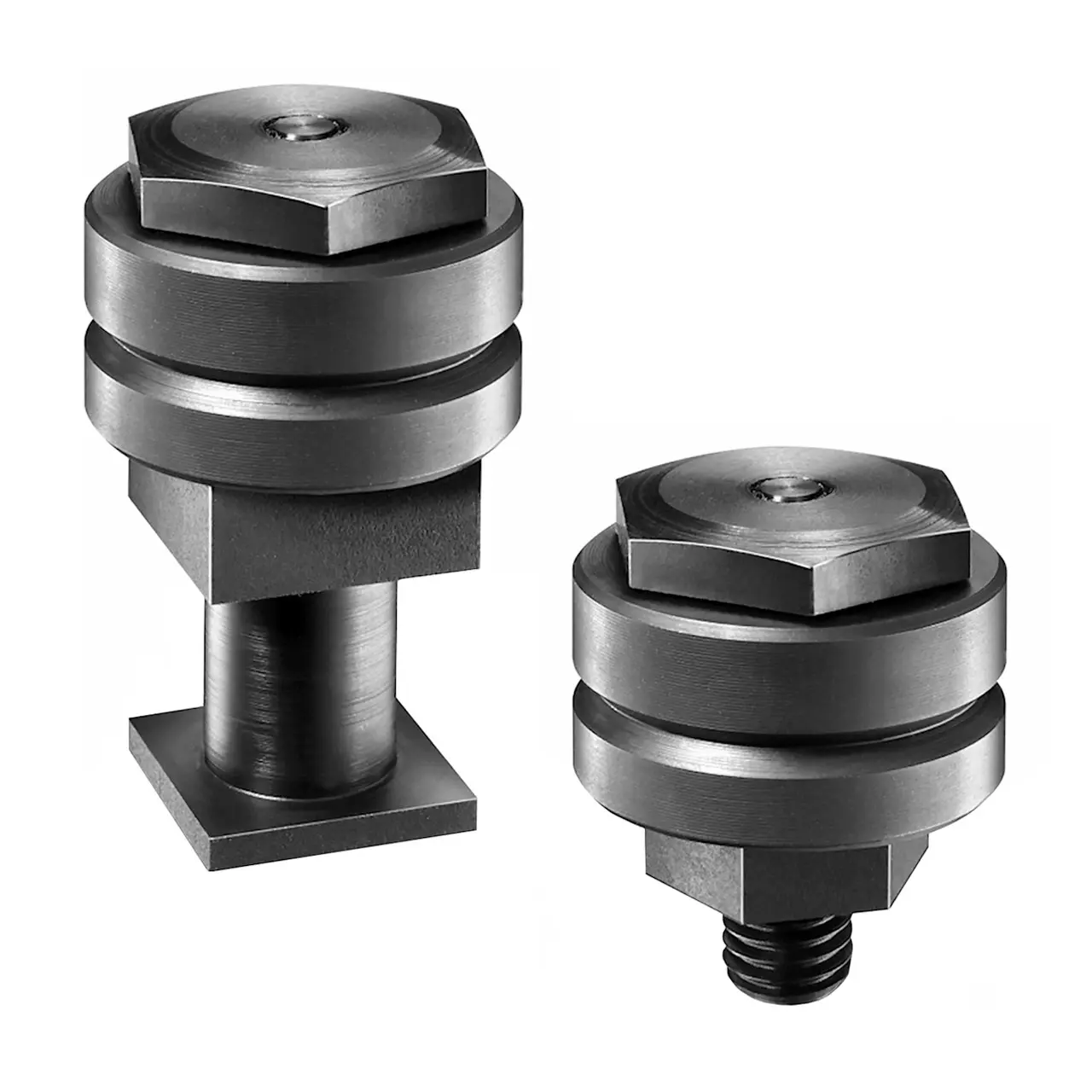

Fig. 1 hs series rollers
Models
5
Rolls
1
Size range
0.3–5 mm
In inches
0.012–0.197 in

Series overview

Datasheet

Full technical specifications for every HS N model in a single PDF.

Download datasheet

How to choose a model

A few checks narrow the HS N models below to the ones worth quoting.

Reading the dimensions
The Dimensions column lists the size range, meaning the diameter or thickness of the material, that each model is specified for. For example, HS 14 N covers 0.3–0.6 mm (0.012–0.024 in).
Match the size
Pick the model whose range contains the diameter or thickness of your material. The HS N series spans 0.3–5 mm (0.012–0.197 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.

Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.

Models in this series

Compare dimension ranges, then add the models you need to a quote request.

HS N 1-roll models
ModelDimensionsRequest a quote
HS 14 N

0.3–0.6 mm0.012–0.024 in

0.3–0.6 mm0.012–0.024 in
HS 17 N

0.5–0.8 mm0.02–0.031 in

0.5–0.8 mm0.02–0.031 in
HS 23 N

0.8–1.5 mm0.031–0.059 in

0.8–1.5 mm0.031–0.059 in
HS 31 N

1.5–3.0 mm0.059–0.118 in

1.5–3.0 mm0.059–0.118 in
HS 40 N

3.0–5.0 mm0.118–0.197 in

3.0–5.0 mm0.118–0.197 in

Selection help

Not sure which model fits your line?

Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
