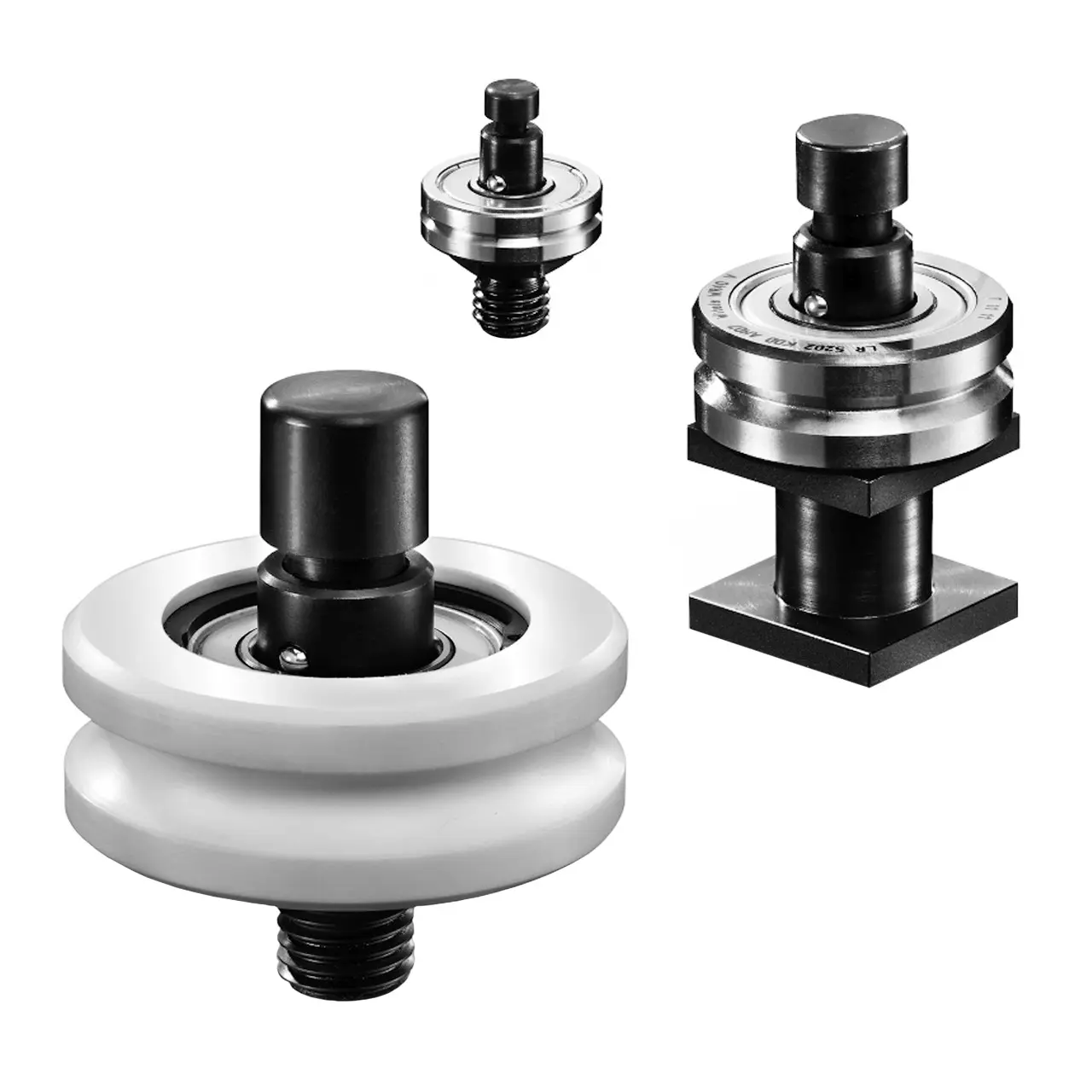

FT Straightening Rolls
- Models
- 14
- Rolls
- 1
- Size range
- 0.8–21 mm
- In inches
- 0.031–0.827 in
Series overview
How to choose a model
A few checks narrow the FT models below to the ones worth quoting.
- Reading the dimensions
- The Dimensions column lists the size range, meaning the diameter or thickness of the material, that each model is specified for. For example, FT 22 covers 0.8–1.5 mm (0.031–0.059 in).
- Match the size
- Pick the model whose range contains the diameter or thickness of your material. The FT series spans 0.8–21 mm (0.031–0.827 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.
Models in this series
Compare dimension ranges, then add the models you need to a quote request.
| Model | Dimensions | Request a quote |
|---|---|---|
| FT 22 0.8–1.5 mm0.031–0.059 in | 0.8–1.5 mm0.031–0.059 in | |
| FT 23 0.8–1.5 mm0.031–0.059 in | 0.8–1.5 mm0.031–0.059 in | |
| FT 26 1.0–2.5 mm0.039–0.098 in | 1.0–2.5 mm0.039–0.098 in | |
| FT 31 1.5–3.0 mm0.059–0.118 in | 1.5–3.0 mm0.059–0.118 in | |
| FT 32 1.5–4.0 mm0.059–0.157 in | 1.5–4.0 mm0.059–0.157 in | |
| FT 40 3.0–5.0 mm0.118–0.197 in | 3.0–5.0 mm0.118–0.197 in | |
| FT 45 5.0–7.0 mm0.197–0.276 in | 5.0–7.0 mm0.197–0.276 in | |
| FT 52 7.0–9.0 mm0.276–0.354 in | 7.0–9.0 mm0.276–0.354 in | |
| FT 62 6.5–10.5 mm0.256–0.413 in | 6.5–10.5 mm0.256–0.413 in | |
| FT 72 7.0–12.0 mm0.276–0.472 in | 7.0–12.0 mm0.276–0.472 in | |
| FT 80 8.0–16.0 mm0.315–0.63 in | 8.0–16.0 mm0.315–0.63 in | |
| FT 110 10.0–21.0 mm0.394–0.827 in | 10.0–21.0 mm0.394–0.827 in | |
| FT 520 6.0–9.5 mm0.236–0.374 in | 6.0–9.5 mm0.236–0.374 in | |
| FT 800 7.5–16.0 mm0.295–0.63 in | 7.5–16.0 mm0.295–0.63 in |
Selection help
Not sure which model fits your line?
Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
