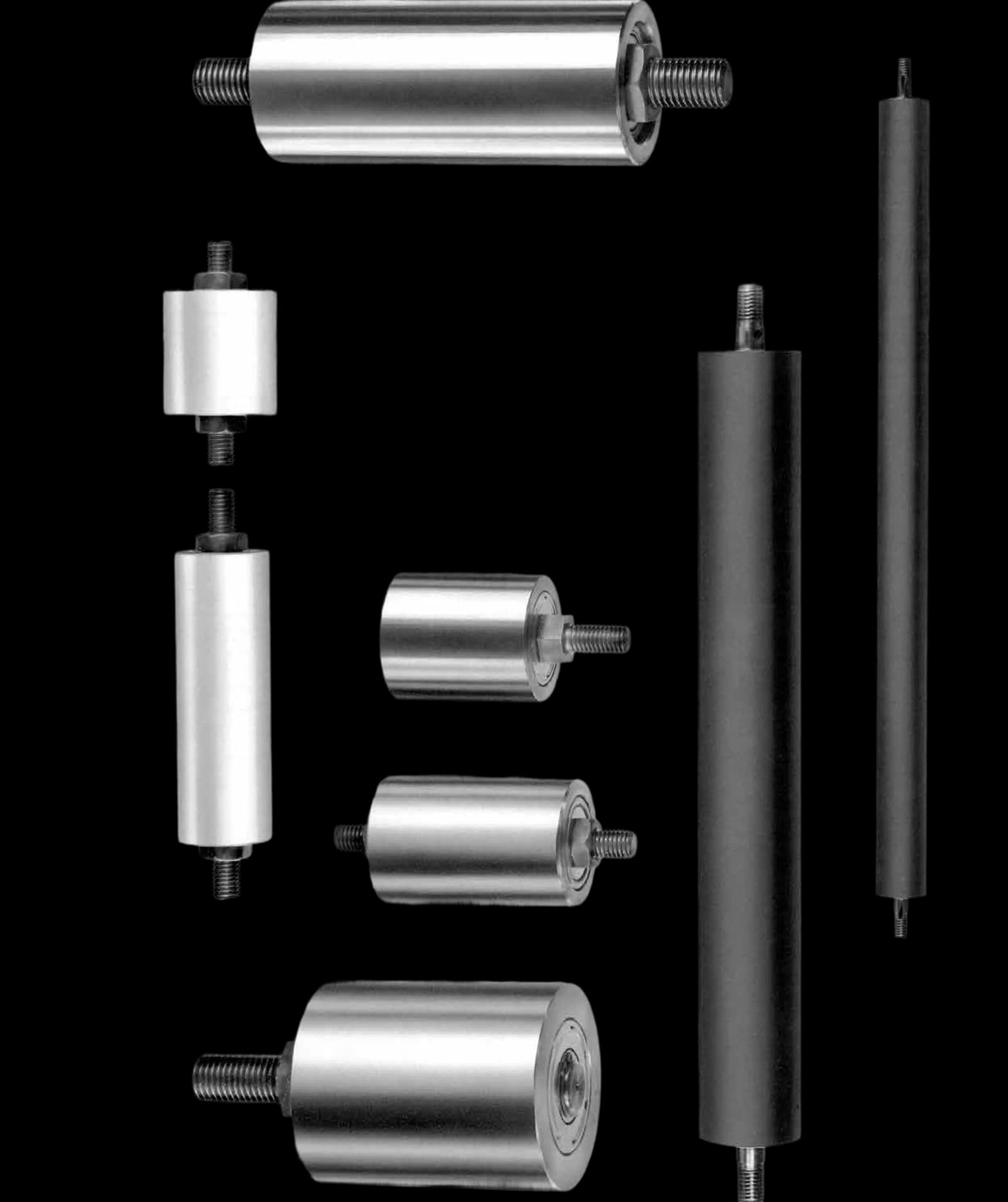

FB Straightening Rolls
- Models
- 11
- Rolls
- 1
- Size range
- 1–55 mm
- In inches
- 0.039–2.17 in
Series overview
How to choose a model
A few checks narrow the FB models below to the ones worth quoting.
- Reading the dimensions
- The Dimensions column lists the size range, meaning the diameter or thickness of the material, that each model is specified for. For example, FB 20 covers 1.0–10.0 mm (0.039–0.394 in).
- Match the size
- Pick the model whose range contains the diameter or thickness of your material. The FB series spans 1–55 mm (0.039–2.17 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.
Models in this series
Compare dimension ranges, then add the models you need to a quote request.
| Model | Dimensions | Request a quote |
|---|---|---|
| FB 20 1.0–10.0 mm0.039–0.394 in | 1.0–10.0 mm0.039–0.394 in | |
| FB 25 1.0–12.0 mm0.039–0.472 in | 1.0–12.0 mm0.039–0.472 in | |
| FB 30 1.0–15.0 mm0.039–0.591 in | 1.0–15.0 mm0.039–0.591 in | |
| FB 40 1.0–20.0 mm0.039–0.787 in | 1.0–20.0 mm0.039–0.787 in | |
| FB 50 1.0–25.0 mm0.039–0.984 in | 1.0–25.0 mm0.039–0.984 in | |
| FB 60 1.0–30.0 mm0.039–1.18 in | 1.0–30.0 mm0.039–1.18 in | |
| FB 70 1.0–35.0 mm0.039–1.38 in | 1.0–35.0 mm0.039–1.38 in | |
| FB 80 1.0–40.0 mm0.039–1.57 in | 1.0–40.0 mm0.039–1.57 in | |
| FB 90 1.0–45.0 mm0.039–1.77 in | 1.0–45.0 mm0.039–1.77 in | |
| FB 100 1.0–50.0 mm0.039–1.97 in | 1.0–50.0 mm0.039–1.97 in | |
| FB 110 1.0–55.0 mm0.039–2.17 in | 1.0–55.0 mm0.039–2.17 in |
Selection help
Not sure which model fits your line?
Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
