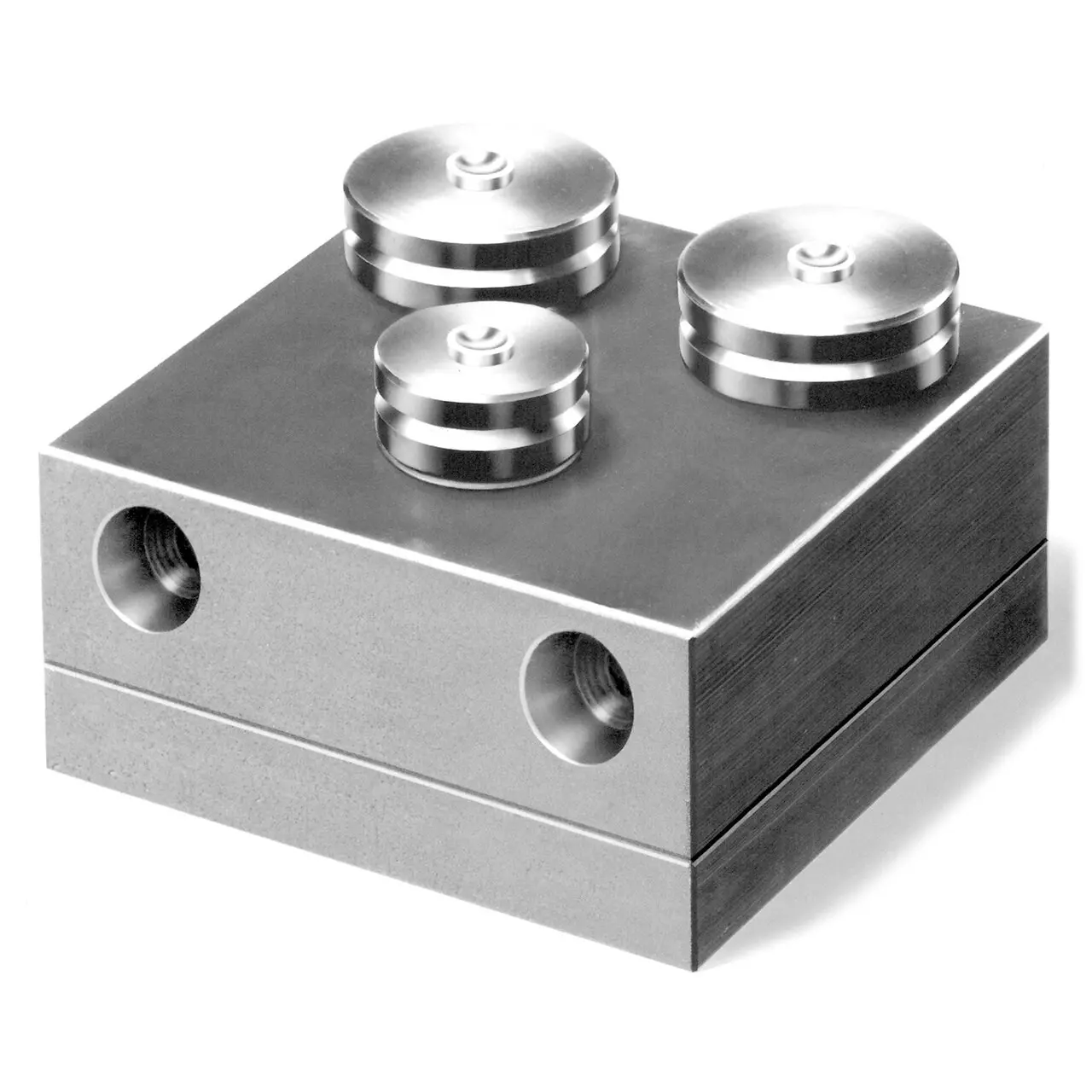

TR Wire Straighteners
- Models
- 5
- Rolls
- 3
- Size range
- 0.1–3 mm
- In inches
- 0.004–0.118 in
Series overview
- Materials
- Wire
- Capabilities
- Adjustable rolls
How to choose a model
A few checks narrow the TR models below to the ones worth quoting.
- Reading the model names
- In TR model names the first number is the roll count and the second is the upper limit of the size range. TR 3-0.3 has 3 rolls and covers 0.1–0.3 mm (0.004–0.012 in).
- Match the material
- Every TR model is listed for wire, so material does not separate models within this series. Use size and roll count to narrow the choice.
- Match the size
- Pick the model whose range contains the diameter or thickness of your material. The TR series spans 0.1–3 mm (0.004–0.118 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.
Models in this series
Compare dimension ranges and processing capabilities, then add the models you need to a quote request.
| Model | Dimensions | Materials | Capabilities | Request a quote |
|---|---|---|---|---|
| TR 3-0.3 0.1–0.3 mm0.004–0.012 in Wire · Adjustable rolls | 0.1–0.3 mm0.004–0.012 in | Wire | Adjustable rolls | |
| TR 3-0.5 0.3–0.5 mm0.012–0.02 in Wire · Adjustable rolls | 0.3–0.5 mm0.012–0.02 in | Wire | Adjustable rolls | |
| TR 3-0.8 0.5–0.8 mm0.02–0.031 in Wire · Adjustable rolls | 0.5–0.8 mm0.02–0.031 in | Wire | Adjustable rolls | |
| TR 3-1.5 0.8–1.5 mm0.031–0.059 in Wire · Adjustable rolls | 0.8–1.5 mm0.031–0.059 in | Wire | Adjustable rolls | |
| TR 3-3.0 1.5–3.0 mm0.059–0.118 in Wire · Adjustable rolls | 1.5–3.0 mm0.059–0.118 in | Wire | Adjustable rolls |
Selection help
Not sure which model fits your line?
Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
