SPR Wire Straighteners

spr 5 handheld straightener

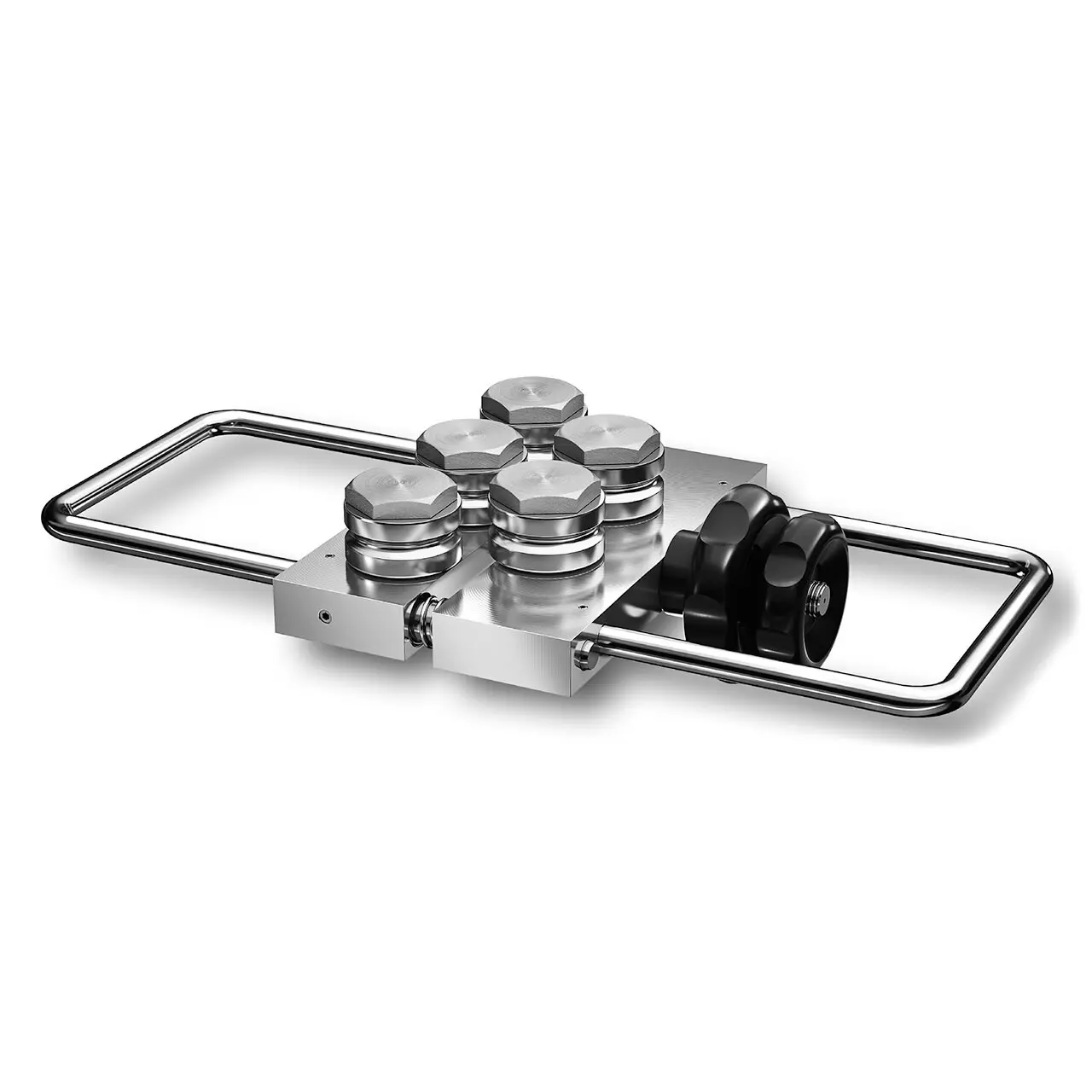

Fig. 1 spr 5 handheld straightener
Models
4
Rolls
5–7
Size range
3–13 mm
In inches
0.118–0.512 in

Series overview

Materials
  • Wire
  • Tube
  • Cable
Capabilities
  • Adjustable rolls
  • Quick closing

Datasheet

Full technical specifications for every SPR model in a single PDF.

Download datasheet

How to choose a model

A few checks narrow the SPR models below to the ones worth quoting.

Reading the model names
In SPR model names the first number is the roll count and the second is the upper limit of the size range. SPR 5-6.5 has 5 rolls and covers 3.0–6.5 mm (0.118–0.256 in).
Match the material
Every SPR model is listed for wire, tube and cable, so material does not separate models within this series. Use size and roll count to narrow the choice.
Match the size
Pick the model whose range contains the diameter or thickness of your material. The SPR series spans 3–13 mm (0.118–0.512 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
Choose the roll count
SPR is offered with 5 and 7 rolls. More rolls put the material through more bending cycles and generally straighten harder or springier material more thoroughly. Fewer rolls give a simpler setup.

Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.

Models in this series

Compare dimension ranges and processing capabilities, then add the models you need to a quote request.

5-roll models2

SPR 5-roll models
ModelDimensionsMaterialsCapabilitiesRequest a quote
SPR 5-6.5

3.0–6.5 mm0.118–0.256 in

Wire, Tube, Cable · Adjustable rolls, Quick closing

3.0–6.5 mm0.118–0.256 inWire, Tube, CableAdjustable rolls, Quick closing
SPR 5-13.0

6.5–13.0 mm0.256–0.512 in

Wire, Tube, Cable · Adjustable rolls, Quick closing

6.5–13.0 mm0.256–0.512 inWire, Tube, CableAdjustable rolls, Quick closing

7-roll models2

SPR 7-roll models
ModelDimensionsMaterialsCapabilitiesRequest a quote
SPR 7-6.5

3.0–6.5 mm0.118–0.256 in

Wire, Tube, Cable · Adjustable rolls, Quick closing

3.0–6.5 mm0.118–0.256 inWire, Tube, CableAdjustable rolls, Quick closing
SPR 7-13.0

6.5–13.0 mm0.256–0.512 in

Wire, Tube, Cable · Adjustable rolls, Quick closing

6.5–13.0 mm0.256–0.512 inWire, Tube, CableAdjustable rolls, Quick closing

Selection help

Not sure which model fits your line?

Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
