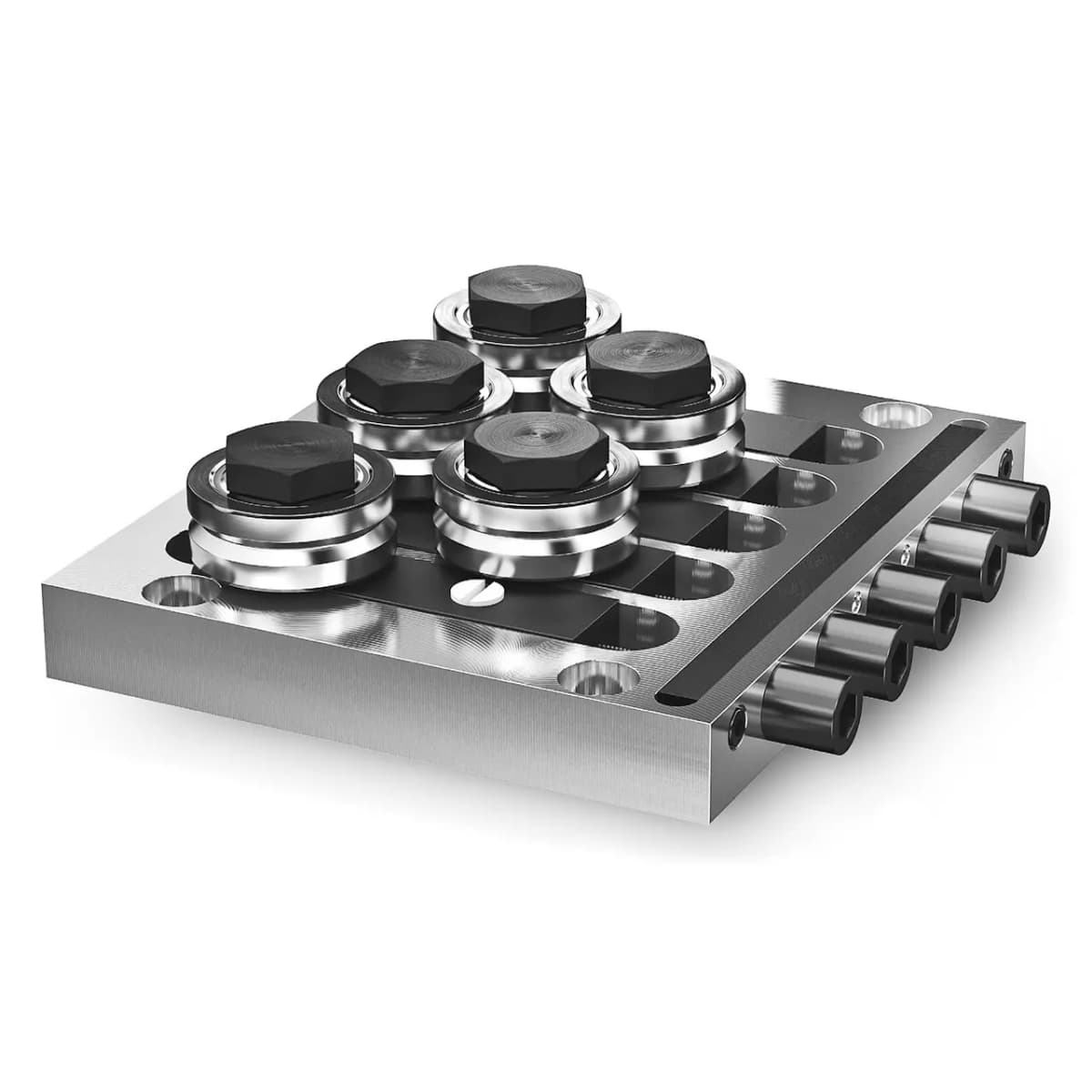

RT Wire Straighteners

- Models
- 32
- Rolls
- 5–7
- Size range
- 0.1–9 mm
- In inches
- 0.004–0.354 in
Series overview
- Materials
- Wire
- Tube
- Strip
- Cable
- Profile
- Capabilities
- Adjustable rolls
Datasheet
The RT datasheet is available on request. Add the models you need with Add to quote below and we will send the matching documentation.
Request the datasheetHow to choose a model
A few checks narrow the RT models below to the ones worth quoting.
- Reading the dimensions
- The Dimensions column lists the size range, meaning the diameter or thickness of the material, that each model is specified for. For example, RT 5-0.3 2/3 covers 0.1–0.3 mm (0.004–0.012 in).
- Match the material
- Every RT model is listed for wire, tube, strip, cable and profile, so material does not separate models within this series. Use size and roll count to narrow the choice.
- Match the size
- Pick the model whose range contains the diameter or thickness of your material. The RT series spans 0.1–9 mm (0.004–0.354 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
- Choose the roll count
- RT is offered with 5 and 7 rolls. More rolls put the material through more bending cycles and generally straighten harder or springier material more thoroughly. Fewer rolls give a simpler setup.
Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.
Models in this series
Compare dimension ranges and processing capabilities, then add the models you need to a quote request.
5-roll models16
| Model | Dimensions | Materials | Capabilities | Request a quote |
|---|---|---|---|---|
| RT 5-0.3 2/3 0.1–0.3 mm0.004–0.012 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.1–0.3 mm0.004–0.012 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-0.3 3/2 0.1–0.3 mm0.004–0.012 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.1–0.3 mm0.004–0.012 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-0.5 2/3 0.3–0.5 mm0.012–0.02 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.3–0.5 mm0.012–0.02 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-0.5 3/2 0.3–0.5 mm0.012–0.02 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.3–0.5 mm0.012–0.02 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-0.9 2/3 0.5–0.9 mm0.02–0.035 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.5–0.9 mm0.02–0.035 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-0.9 3/2 0.5–0.9 mm0.02–0.035 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.5–0.9 mm0.02–0.035 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-1.5 2/3 0.9–1.5 mm0.035–0.059 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.9–1.5 mm0.035–0.059 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-1.5 3/2 0.9–1.5 mm0.035–0.059 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.9–1.5 mm0.035–0.059 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-3.0 2/3 1.5–3.0 mm0.059–0.118 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 1.5–3.0 mm0.059–0.118 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-3.0 3/2 1.5–3.0 mm0.059–0.118 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 1.5–3.0 mm0.059–0.118 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-5.0 2/3 3.0–5.0 mm0.118–0.197 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 3.0–5.0 mm0.118–0.197 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-5.0 3/2 3.0–5.0 mm0.118–0.197 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 3.0–5.0 mm0.118–0.197 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-7.0 2/3 5.0–7.0 mm0.197–0.276 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 5.0–7.0 mm0.197–0.276 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-7.0 3/2 5.0–7.0 mm0.197–0.276 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 5.0–7.0 mm0.197–0.276 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-9.0 2/3 7.0–9.0 mm0.276–0.354 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 7.0–9.0 mm0.276–0.354 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 5-9.0 3/2 7.0–9.0 mm0.276–0.354 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 7.0–9.0 mm0.276–0.354 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls |
7-roll models16
| Model | Dimensions | Materials | Capabilities | Request a quote |
|---|---|---|---|---|
| RT 7-0.3 3/4 0.1–0.3 mm0.004–0.012 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.1–0.3 mm0.004–0.012 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-0.3 4/3 0.1–0.3 mm0.004–0.012 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.1–0.3 mm0.004–0.012 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-0.5 3/4 0.3–0.5 mm0.012–0.02 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.3–0.5 mm0.012–0.02 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-0.5 4/3 0.3–0.5 mm0.012–0.02 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.3–0.5 mm0.012–0.02 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-0.9 3/4 0.5–0.9 mm0.02–0.035 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.5–0.9 mm0.02–0.035 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-0.9 4/3 0.5–0.9 mm0.02–0.035 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.5–0.9 mm0.02–0.035 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-1.5 3/4 0.9–1.5 mm0.035–0.059 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.9–1.5 mm0.035–0.059 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-1.5 4/3 0.9–1.5 mm0.035–0.059 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 0.9–1.5 mm0.035–0.059 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-3.0 3/4 1.5–3.0 mm0.059–0.118 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 1.5–3.0 mm0.059–0.118 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-3.0 4/3 1.5–3.0 mm0.059–0.118 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 1.5–3.0 mm0.059–0.118 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-5.0 3/4 3.0–5.0 mm0.118–0.197 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 3.0–5.0 mm0.118–0.197 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-5.0 4/3 3.0–5.0 mm0.118–0.197 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 3.0–5.0 mm0.118–0.197 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-7.0 3/4 5.0–7.0 mm0.197–0.276 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 5.0–7.0 mm0.197–0.276 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-7.0 4/3 5.0–7.0 mm0.197–0.276 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 5.0–7.0 mm0.197–0.276 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-9.0 3/4 7.0–9.0 mm0.276–0.354 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 7.0–9.0 mm0.276–0.354 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls | |
| RT 7-9.0 4/3 7.0–9.0 mm0.276–0.354 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls | 7.0–9.0 mm0.276–0.354 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls |
Selection help
Not sure which model fits your line?
Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
