PS Wire Straighteners

ps straightener

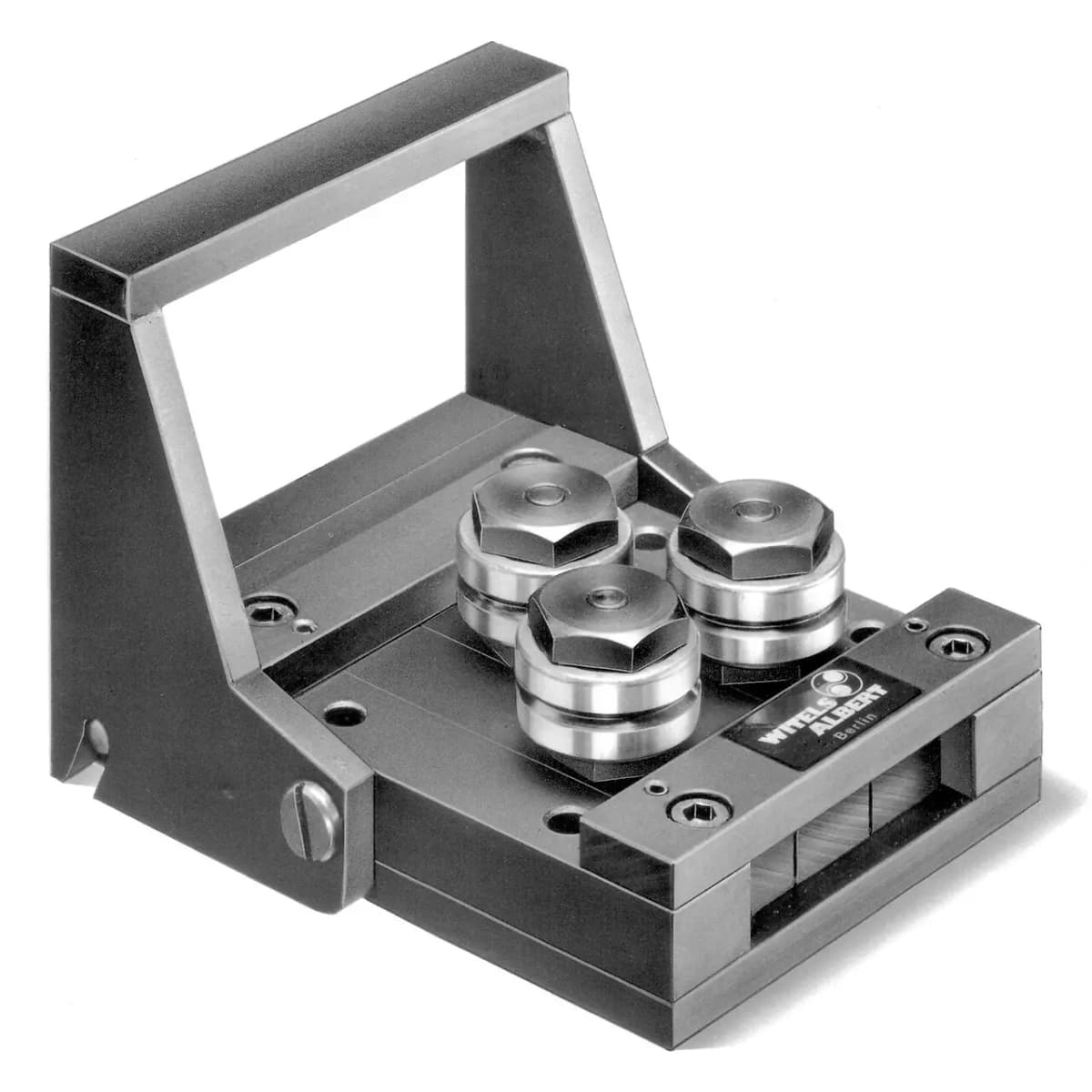

Fig. 1 ps straightener
Models
27
Rolls
3–7
Size range
0.1–15 mm
In inches
0.004–0.591 in

Series overview

Materials
  • Wire
  • Tube
  • Strip
  • Profile
Capabilities
  • Adjustable rolls
  • Quick closing

Datasheet

Full technical specifications for every PS model in a single PDF.

Download datasheet

How to choose a model

A few checks narrow the PS models below to the ones worth quoting.

Reading the model names
In PS model names the first number is the roll count and the second is the upper limit of the size range. PS 3-0.3 has 3 rolls and covers 0.1–0.3 mm (0.004–0.012 in).
Match the material
Every PS model is listed for wire, tube, strip and profile, so material does not separate models within this series. Use size and roll count to narrow the choice.
Match the size
Pick the model whose range contains the diameter or thickness of your material. The PS series spans 0.1–15 mm (0.004–0.591 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
Choose the roll count
PS is offered with 3, 5 and 7 rolls. More rolls put the material through more bending cycles and generally straighten harder or springier material more thoroughly. Fewer rolls give a simpler setup.

Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.

Models in this series

Compare dimension ranges and processing capabilities, then add the models you need to a quote request.

3-roll models9

PS 3-roll models
ModelDimensionsMaterialsCapabilitiesRequest a quote
PS 3-0.3

0.1–0.3 mm0.004–0.012 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.1–0.3 mm0.004–0.012 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 3-0.5

0.3–0.5 mm0.012–0.02 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.3–0.5 mm0.012–0.02 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 3-0.9

0.5–0.9 mm0.02–0.035 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.5–0.9 mm0.02–0.035 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 3-1.5

0.9–1.5 mm0.035–0.059 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.9–1.5 mm0.035–0.059 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 3-3.0

1.5–3.0 mm0.059–0.118 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

1.5–3.0 mm0.059–0.118 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 3-5.0

3.0–5.0 mm0.118–0.197 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

3.0–5.0 mm0.118–0.197 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 3-7.0

5.0–7.0 mm0.197–0.276 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

5.0–7.0 mm0.197–0.276 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 3-9.0

7.0–9.0 mm0.276–0.354 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

7.0–9.0 mm0.276–0.354 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 3-15.0

9.0–15.0 mm0.354–0.591 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

9.0–15.0 mm0.354–0.591 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing

5-roll models9

PS 5-roll models
ModelDimensionsMaterialsCapabilitiesRequest a quote
PS 5-0.3

0.1–0.3 mm0.004–0.012 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.1–0.3 mm0.004–0.012 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 5-0.5

0.3–0.5 mm0.012–0.02 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.3–0.5 mm0.012–0.02 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 5-0.9

0.5–0.9 mm0.02–0.035 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.5–0.9 mm0.02–0.035 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 5-1.5

0.9–1.5 mm0.035–0.059 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.9–1.5 mm0.035–0.059 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 5-3.0

1.5–3.0 mm0.059–0.118 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

1.5–3.0 mm0.059–0.118 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 5-5.0

3.0–5.0 mm0.118–0.197 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

3.0–5.0 mm0.118–0.197 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 5-7.0

5.0–7.0 mm0.197–0.276 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

5.0–7.0 mm0.197–0.276 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 5-9.0

7.0–9.0 mm0.276–0.354 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

7.0–9.0 mm0.276–0.354 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 5-15.0

9.0–15.0 mm0.354–0.591 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

9.0–15.0 mm0.354–0.591 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing

7-roll models9

PS 7-roll models
ModelDimensionsMaterialsCapabilitiesRequest a quote
PS 7-0.3

0.1–0.3 mm0.004–0.012 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.1–0.3 mm0.004–0.012 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 7-0.5

0.3–0.5 mm0.012–0.02 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.3–0.5 mm0.012–0.02 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 7-0.9

0.5–0.9 mm0.02–0.035 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.5–0.9 mm0.02–0.035 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 7-1.5

0.9–1.5 mm0.035–0.059 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

0.9–1.5 mm0.035–0.059 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 7-3.0

1.5–3.0 mm0.059–0.118 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

1.5–3.0 mm0.059–0.118 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 7-5.0

3.0–5.0 mm0.118–0.197 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

3.0–5.0 mm0.118–0.197 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 7-7.0

5.0–7.0 mm0.197–0.276 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

5.0–7.0 mm0.197–0.276 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 7-9.0

7.0–9.0 mm0.276–0.354 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

7.0–9.0 mm0.276–0.354 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing
PS 7-15.0

9.0–15.0 mm0.354–0.591 in

Wire, Tube, Strip, Profile · Adjustable rolls, Quick closing

9.0–15.0 mm0.354–0.591 inWire, Tube, Strip, ProfileAdjustable rolls, Quick closing

Selection help

Not sure which model fits your line?

Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
