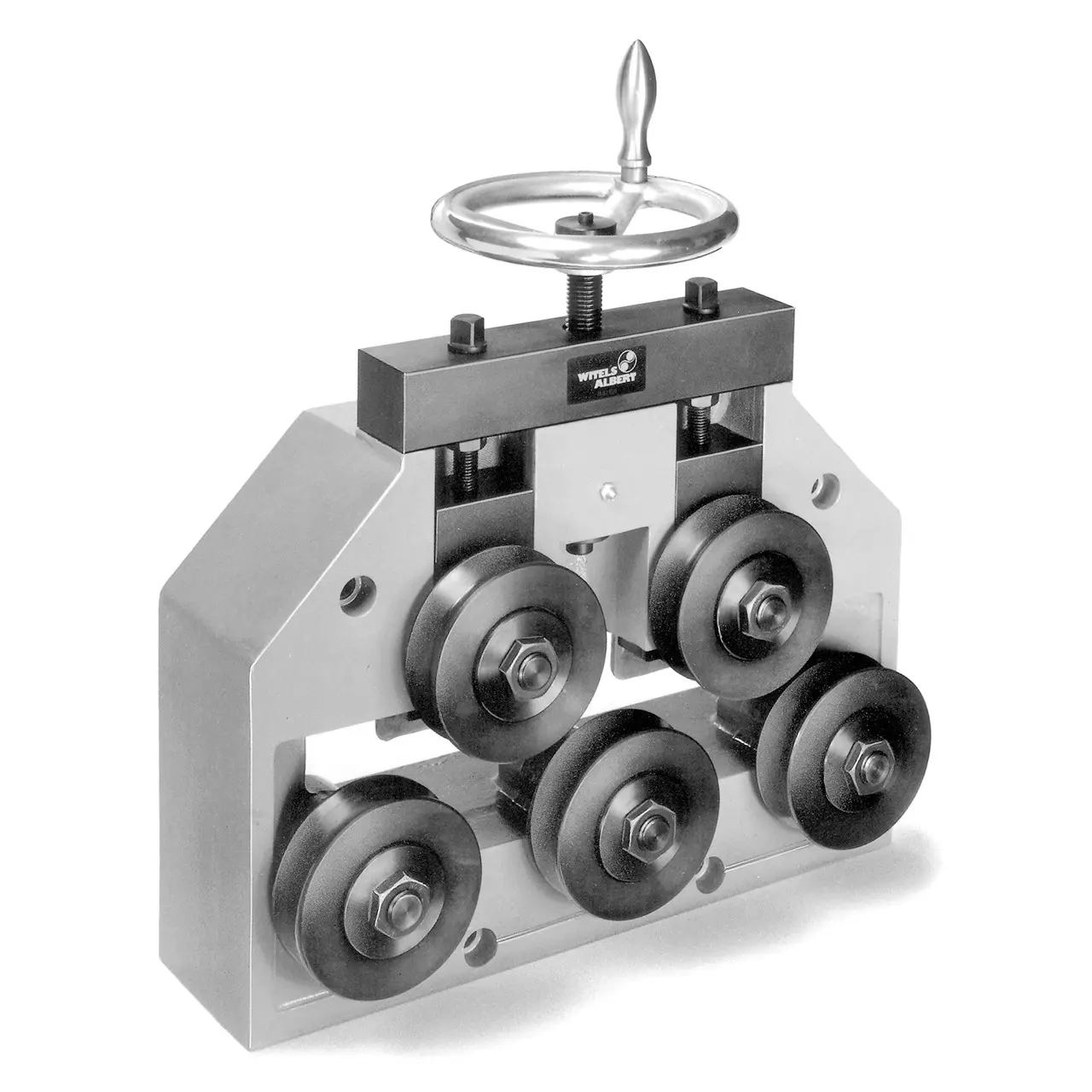

ERS Wire Straighteners
- Models
- 4
- Rolls
- 5
- Size range
- 5–30 mm
- In inches
- 0.197–1.18 in
Series overview
- Materials
- Wire
- Tube
- Strip
- Cable
- Profile
- Capabilities
- Adjustable rolls
- Quick closing
How to choose a model
A few checks narrow the ERS models below to the ones worth quoting.
- Reading the model names
- In ERS model names the first number is the roll count and the second is the upper limit of the size range. ERS 5-15.0 has 5 rolls and covers 5.0–15.0 mm (0.197–0.591 in).
- Match the material
- Every ERS model is listed for wire, tube, strip, cable and profile, so material does not separate models within this series. Use size and roll count to narrow the choice.
- Match the size
- Pick the model whose range contains the diameter or thickness of your material. The ERS series spans 5–30 mm (0.197–1.18 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.
Models in this series
Compare dimension ranges and processing capabilities, then add the models you need to a quote request.
| Model | Dimensions | Materials | Capabilities | Request a quote |
|---|---|---|---|---|
| ERS 5-15.0 5.0–15.0 mm0.197–0.591 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls, Quick closing | 5.0–15.0 mm0.197–0.591 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls, Quick closing | |
| ERS 5-20.0 10.0–20.0 mm0.394–0.787 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls, Quick closing | 10.0–20.0 mm0.394–0.787 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls, Quick closing | |
| ERS 5-25.0 15.0–25.0 mm0.591–0.984 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls, Quick closing | 15.0–25.0 mm0.591–0.984 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls, Quick closing | |
| ERS 5-30.0 20.0–30.0 mm0.787–1.18 in Wire, Tube, Strip, Cable, Profile · Adjustable rolls, Quick closing | 20.0–30.0 mm0.787–1.18 in | Wire, Tube, Strip, Cable, Profile | Adjustable rolls, Quick closing |
Selection help
Not sure which model fits your line?
Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
