EB Wire Straighteners

EB Straightener

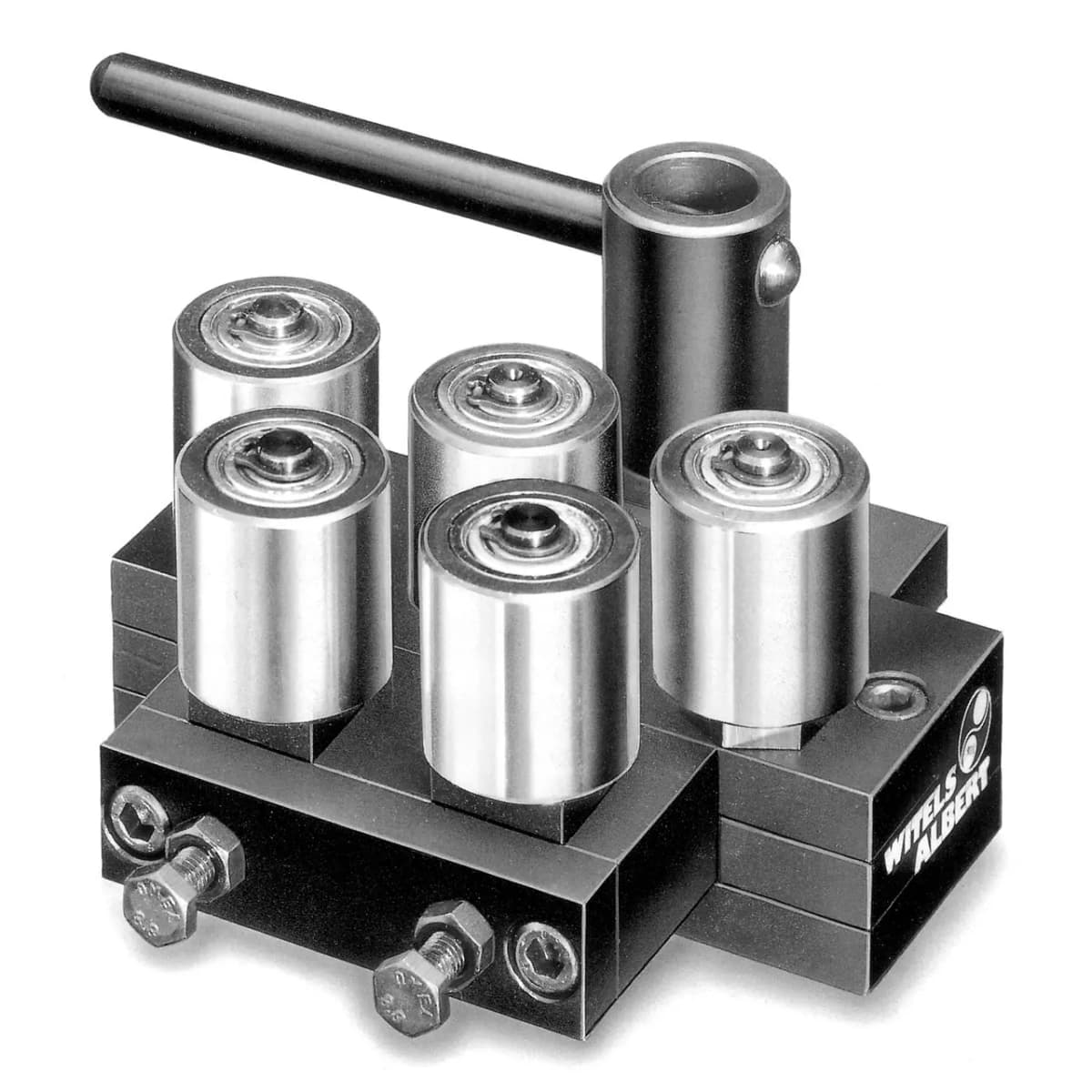

Fig. 1 EB Straightener
Models
14
Rolls
5–7
Size range
0.1–4 mm
In inches
0.004–0.157 in

Series overview

Materials
  • Strip
Capabilities
  • Adjustable rolls

Datasheet

The EB datasheet is available on request. Add the models you need with Add to quote below and we will send the matching documentation.

Request the datasheet

How to choose a model

A few checks narrow the EB models below to the ones worth quoting.

Reading the dimensions
The Dimensions column lists the size range, meaning the diameter or thickness of the material, that each model is specified for. For example, EB 5-10.0 covers 0.1–0.3 mm (0.004–0.012 in).
Match the material
Every EB model is listed for strip, so material does not separate models within this series. Use size and roll count to narrow the choice.
Match the size
Pick the model whose range contains the diameter or thickness of your material. The EB series spans 0.1–4 mm (0.004–0.157 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
Choose the roll count
EB is offered with 5 and 7 rolls. More rolls put the material through more bending cycles and generally straighten harder or springier material more thoroughly. Fewer rolls give a simpler setup.

Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.

Models in this series

Compare dimension ranges and processing capabilities, then add the models you need to a quote request.

5-roll models7

EB 5-roll models
ModelDimensionsMaterialsCapabilitiesRequest a quote
EB 5-10.0

0.1–0.3 mm0.004–0.012 in

Strip · Adjustable rolls

0.1–0.3 mm0.004–0.012 inStripAdjustable rolls
EB 5-20.0

0.3–0.5 mm0.012–0.02 in

Strip · Adjustable rolls

0.3–0.5 mm0.012–0.02 inStripAdjustable rolls
EB 5-30.0

0.5–1.0 mm0.02–0.039 in

Strip · Adjustable rolls

0.5–1.0 mm0.02–0.039 inStripAdjustable rolls
EB 5-40.0

1.0–2.0 mm0.039–0.079 in

Strip · Adjustable rolls

1.0–2.0 mm0.039–0.079 inStripAdjustable rolls
EB 5-50.0

2.0–3.0 mm0.079–0.118 in

Strip · Adjustable rolls

2.0–3.0 mm0.079–0.118 inStripAdjustable rolls
EB 5-60.0

2.0–3.0 mm0.079–0.118 in

Strip · Adjustable rolls

2.0–3.0 mm0.079–0.118 inStripAdjustable rolls
EB 5-70.0

3.0–4.0 mm0.118–0.157 in

Strip · Adjustable rolls

3.0–4.0 mm0.118–0.157 inStripAdjustable rolls

7-roll models7

EB 7-roll models
ModelDimensionsMaterialsCapabilitiesRequest a quote
EB 7-10.0

0.1–0.3 mm0.004–0.012 in

Strip · Adjustable rolls

0.1–0.3 mm0.004–0.012 inStripAdjustable rolls
EB 7-20.0

0.3–0.5 mm0.012–0.02 in

Strip · Adjustable rolls

0.3–0.5 mm0.012–0.02 inStripAdjustable rolls
EB 7-30.0

0.5–1.0 mm0.02–0.039 in

Strip · Adjustable rolls

0.5–1.0 mm0.02–0.039 inStripAdjustable rolls
EB 7-40.0

1.0–2.0 mm0.039–0.079 in

Strip · Adjustable rolls

1.0–2.0 mm0.039–0.079 inStripAdjustable rolls
EB 7-50.0

2.0–3.0 mm0.079–0.118 in

Strip · Adjustable rolls

2.0–3.0 mm0.079–0.118 inStripAdjustable rolls
EB 7-60.0

2.0–3.0 mm0.079–0.118 in

Strip · Adjustable rolls

2.0–3.0 mm0.079–0.118 inStripAdjustable rolls
EB 7-70.0

3.0–4.0 mm0.118–0.157 in

Strip · Adjustable rolls

3.0–4.0 mm0.118–0.157 inStripAdjustable rolls

Selection help

Not sure which model fits your line?

Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
