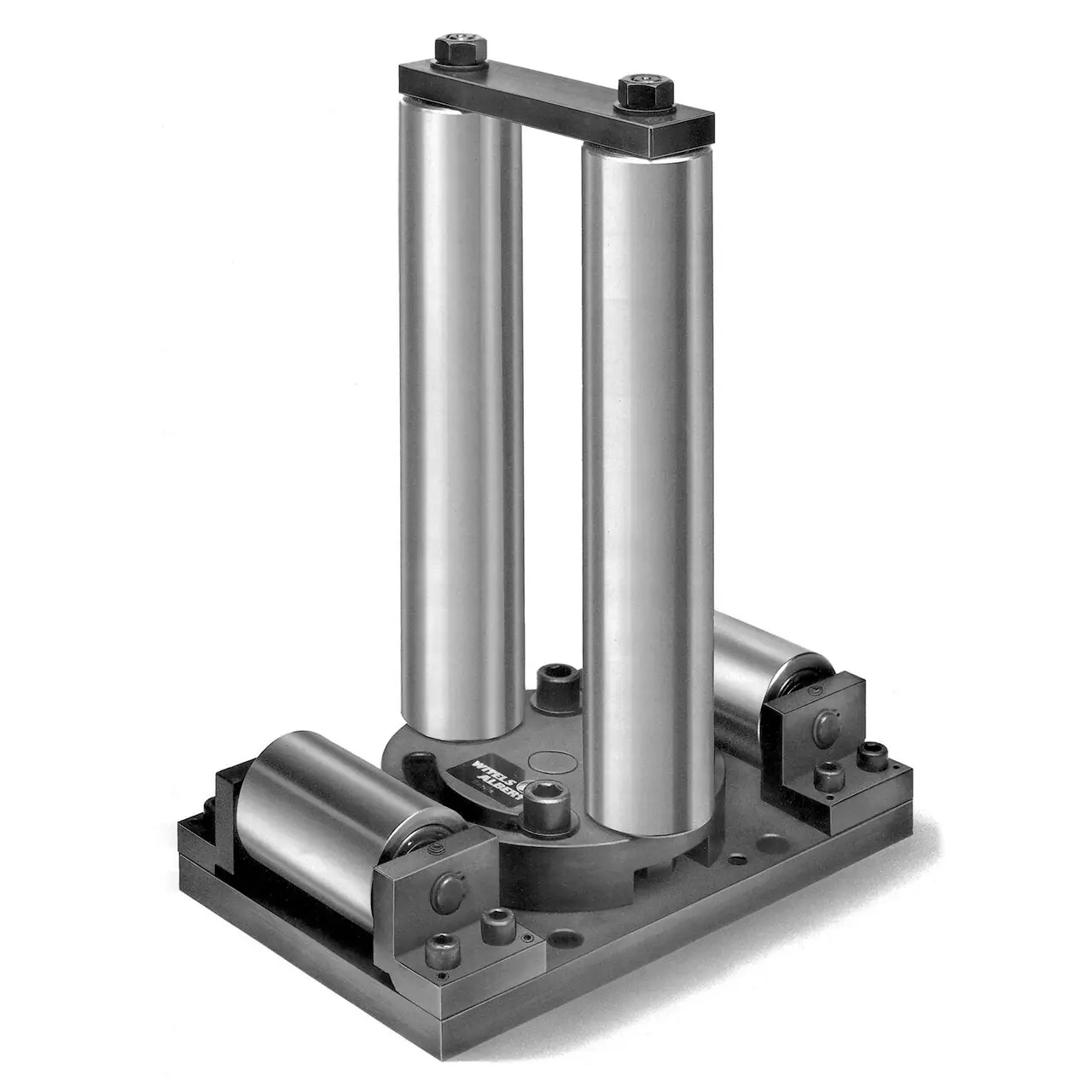

RF Wire Guide Rollers
- Models
- 6
- Rolls
- 4
- Size range
- 1–250 mm
- In inches
- 0.039–9.84 in
Series overview
- Materials
- Tube
- Cable
- Capabilities
- Adjustable rolls
How to choose a model
A few checks narrow the RF models below to the ones worth quoting.
- Reading the dimensions
- The Dimensions column lists the size range, meaning the diameter or thickness of the material, that each model is specified for. For example, RF 5 covers 1.0–5.0 mm (0.039–0.197 in).
- Match the material
- Every RF model is listed for tube and cable, so material does not separate models within this series. Use size and roll count to narrow the choice.
- Match the size
- Pick the model whose range contains the diameter or thickness of your material. The RF series spans 1–250 mm (0.039–9.84 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.
Models in this series
Compare dimension ranges and processing capabilities, then add the models you need to a quote request.
| Model | Dimensions | Materials | Capabilities | Request a quote |
|---|---|---|---|---|
| RF 5 1.0–5.0 mm0.039–0.197 in Tube, Cable · Adjustable rolls | 1.0–5.0 mm0.039–0.197 in | Tube, Cable | Adjustable rolls | |
| RF 10 5.0–10.0 mm0.197–0.394 in Tube, Cable · Adjustable rolls | 5.0–10.0 mm0.197–0.394 in | Tube, Cable | Adjustable rolls | |
| RF 30 10.0–30.0 mm0.394–1.18 in Tube, Cable · Adjustable rolls | 10.0–30.0 mm0.394–1.18 in | Tube, Cable | Adjustable rolls | |
| RF 50 10.0–50.0 mm0.394–1.97 in Tube, Cable · Adjustable rolls | 10.0–50.0 mm0.394–1.97 in | Tube, Cable | Adjustable rolls | |
| RF 100 10.0–100.0 mm0.394–3.94 in Tube, Cable · Adjustable rolls | 10.0–100.0 mm0.394–3.94 in | Tube, Cable | Adjustable rolls | |
| RF 250 40.0–250.0 mm1.57–9.84 in Tube, Cable · Adjustable rolls | 40.0–250.0 mm1.57–9.84 in | Tube, Cable | Adjustable rolls |
Selection help
Not sure which model fits your line?
Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
