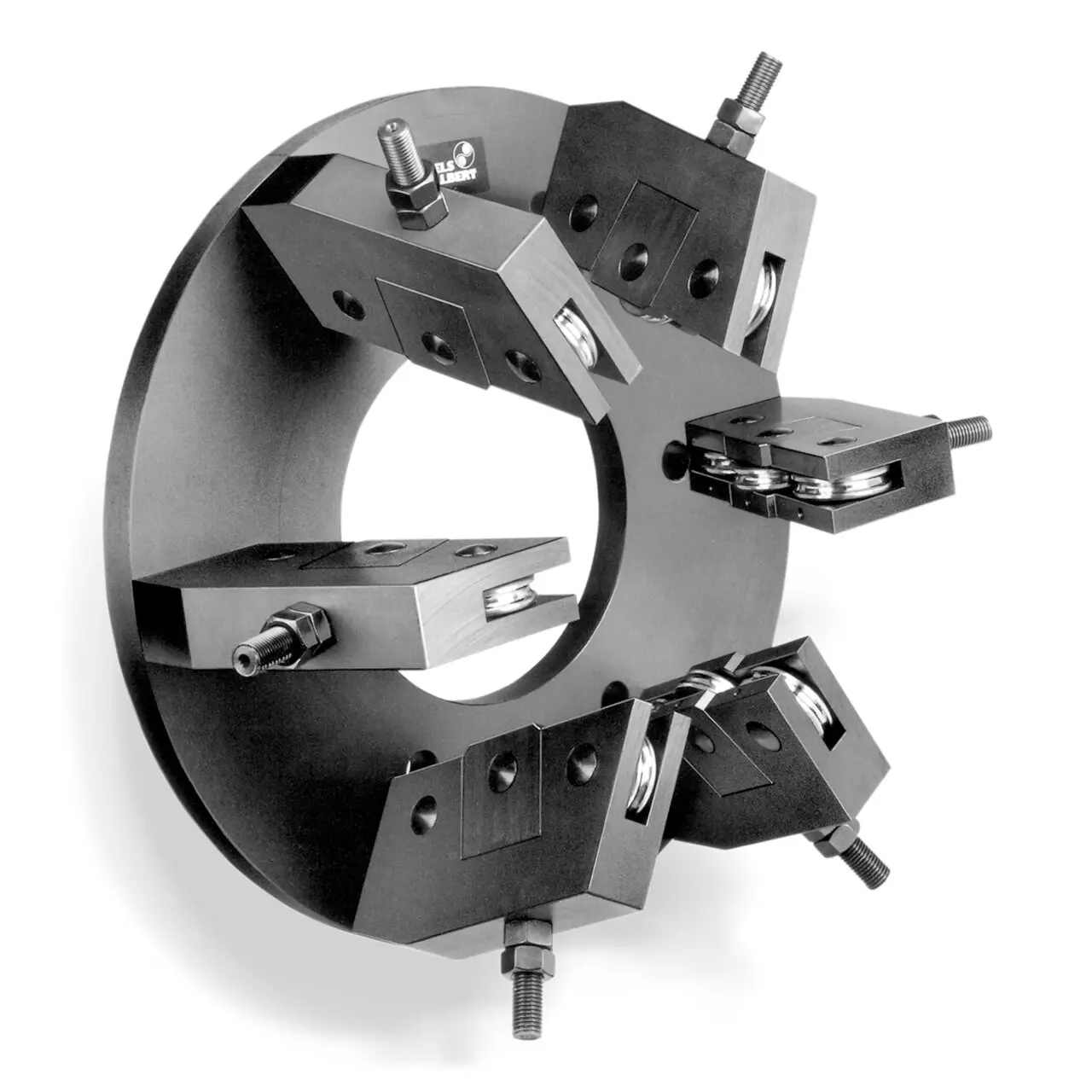

VF 6 Preformers
- Models
- 13
- Rolls
- 18
- Size range
- 0.3–8 mm
- In inches
- 0.012–0.315 in
Series overview
- Materials
- Wire
- Cable
- Capabilities
- Adjustable rolls
How to choose a model
A few checks narrow the VF 6 models below to the ones worth quoting.
- Reading the dimensions
- The Dimensions column lists the size range, meaning the diameter or thickness of the material, that each model is specified for. For example, VF 11-6 covers 0.3–0.5 mm (0.012–0.02 in).
- Match the material
- Every VF 6 model is listed for wire and cable, so material does not separate models within this series. Use size and roll count to narrow the choice.
- Match the size
- Pick the model whose range contains the diameter or thickness of your material. The VF 6 series spans 0.3–8 mm (0.012–0.315 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.
Models in this series
Compare dimension ranges and processing capabilities, then add the models you need to a quote request.
| Model | Dimensions | Materials | Capabilities | Request a quote |
|---|---|---|---|---|
| VF 11-6 0.3–0.5 mm0.012–0.02 in Wire, Cable · Adjustable rolls | 0.3–0.5 mm0.012–0.02 in | Wire, Cable | Adjustable rolls | |
| VF 21-6 0.5–0.8 mm0.02–0.031 in Wire, Cable · Adjustable rolls | 0.5–0.8 mm0.02–0.031 in | Wire, Cable | Adjustable rolls | |
| VF 31-6 0.8–1.0 mm0.031–0.039 in Wire, Cable · Adjustable rolls | 0.8–1.0 mm0.031–0.039 in | Wire, Cable | Adjustable rolls | |
| VF 41-6 1.0–1.5 mm0.039–0.059 in Wire, Cable · Adjustable rolls | 1.0–1.5 mm0.039–0.059 in | Wire, Cable | Adjustable rolls | |
| VF 61-6 1.5–2.0 mm0.059–0.079 in Wire, Cable · Adjustable rolls | 1.5–2.0 mm0.059–0.079 in | Wire, Cable | Adjustable rolls | |
| VF 82-6 2.0–3.0 mm0.079–0.118 in Wire, Cable · Adjustable rolls | 2.0–3.0 mm0.079–0.118 in | Wire, Cable | Adjustable rolls | |
| VF 102-6 3.0–3.5 mm0.118–0.138 in Wire, Cable · Adjustable rolls | 3.0–3.5 mm0.118–0.138 in | Wire, Cable | Adjustable rolls | |
| VF 122-6 3.5–4.0 mm0.138–0.157 in Wire, Cable · Adjustable rolls | 3.5–4.0 mm0.138–0.157 in | Wire, Cable | Adjustable rolls | |
| VF 142-6 4.0–5.0 mm0.157–0.197 in Wire, Cable · Adjustable rolls | 4.0–5.0 mm0.157–0.197 in | Wire, Cable | Adjustable rolls | |
| VF 162-6 5.0–6.0 mm0.197–0.236 in Wire, Cable · Adjustable rolls | 5.0–6.0 mm0.197–0.236 in | Wire, Cable | Adjustable rolls | |
| VF 182-6 6.0–6.5 mm0.236–0.256 in Wire, Cable · Adjustable rolls | 6.0–6.5 mm0.236–0.256 in | Wire, Cable | Adjustable rolls | |
| VF 202-6 6.7–7.0 mm0.264–0.276 in Wire, Cable · Adjustable rolls | 6.7–7.0 mm0.264–0.276 in | Wire, Cable | Adjustable rolls | |
| VF 222-6 7.0–8.0 mm0.276–0.315 in Wire, Cable · Adjustable rolls | 7.0–8.0 mm0.276–0.315 in | Wire, Cable | Adjustable rolls |
Selection help
Not sure which model fits your line?
Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
