NA S Drive Units

- Models
- 3
- Rolls
- 2
- Size range
- 0.6–15 mm
- In inches
- 0.024–0.591 in
Series overview

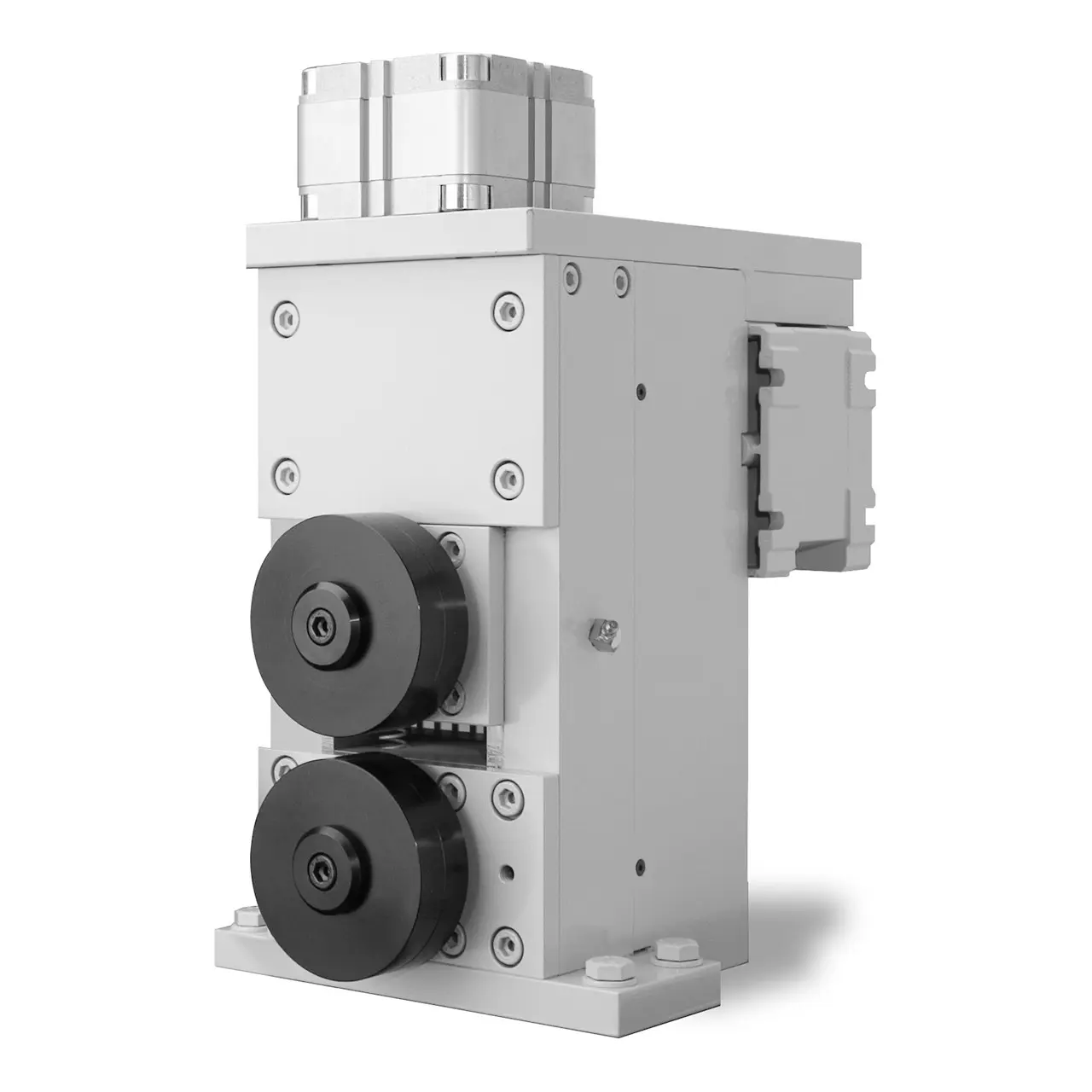

NA S drive units feed wire, tube, cable and profile from 0.6 to 15 mm with one driven pair of transport rolls and pneumatic clamping. NA 60 S, NA 100 S and NA 160 S split the range at 2 and 7 mm, and all rolls are adjustable.
- Materials
- Wire
- Tube
- Cable
- Profile
- Capabilities
- Adjustable rolls
Shared across the series
- One driven pair of transport rolls
- Pneumatic clamping
- All rolls adjustable
How to choose a model
A few checks narrow the NA S models below to the ones worth quoting.
- Reading the dimensions
- The Dimensions column lists the size range, meaning the diameter or thickness of the material, that each model is specified for. For example, NA 60 S covers 0.6–2.0 mm (0.024–0.079 in).
- Match the material
- Every NA S model is listed for wire, tube, cable and profile, so material does not separate models within this series. Use size and roll count to narrow the choice.
- Match the size
- Pick the model whose range contains the diameter or thickness of your material. The NA S series spans 0.6–15 mm (0.024–0.591 in) in total. If your size sits on the boundary between two models, ask us which suits your material better.
Tolerance and line speed also affect the right choice. Send your material, size, tolerance and line speed with your quote request and we will confirm the model with Witels-Albert.
Models in this series
Compare dimension ranges and processing capabilities, then add the models you need to a quote request.
| Model | Dimensions | Materials | Capabilities | Request a quote |
|---|---|---|---|---|
| NA 60 S 0.6–2.0 mm0.024–0.079 in Wire, Tube, Cable, Profile · Adjustable rolls | 0.6–2.0 mm0.024–0.079 in | Wire, Tube, Cable, Profile | Adjustable rolls | |
| NA 100 S 2.0–7.0 mm0.079–0.276 in Wire, Tube, Cable, Profile · Adjustable rolls | 2.0–7.0 mm0.079–0.276 in | Wire, Tube, Cable, Profile | Adjustable rolls | |
| NA 160 S 7.0–15.0 mm0.276–0.591 in Wire, Tube, Cable, Profile · Adjustable rolls | 7.0–15.0 mm0.276–0.591 in | Wire, Tube, Cable, Profile | Adjustable rolls |
Selection help
Not sure which model fits your line?
Send your material, diameter, and throughput. Our team in Branford, CT works with Witels-Albert in Germany to specify the right configuration.
